Description

Product Overview

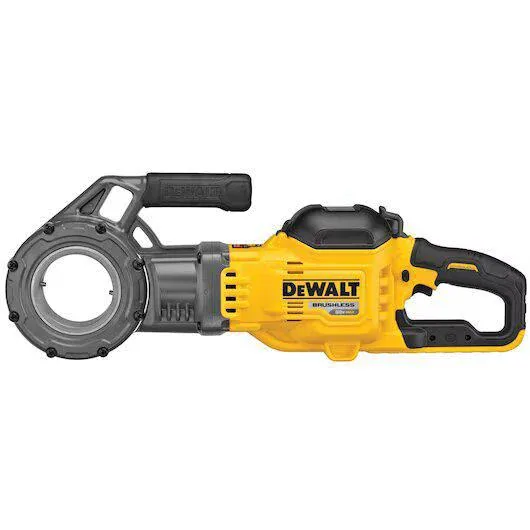

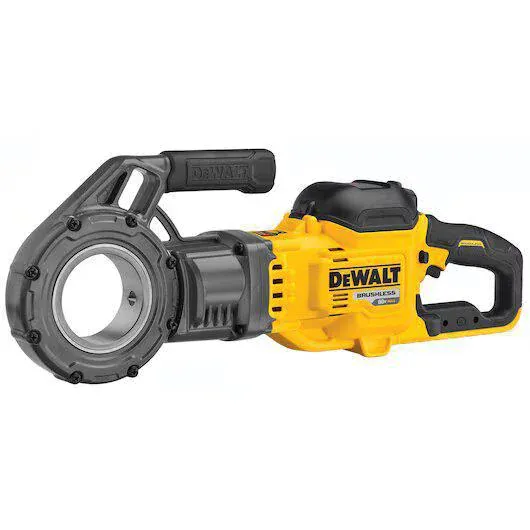

The FLEXVOLT 60V MAX Cordless Pipe Threader Kit With Die Heads can thread 1/2″– 2″black iron pipe, rigid conduit, and more. It comes with an oil-resistant glass-filled nylon battery to protect it from cutting oils used to complete threads and is housed in a latched and sealed battery box. Equipped with the E-Clutch® System, that senses the motion of the tool and shuts down if necessary in bind-up situations. This kit also includes a patent pending pipe clamp with a depth gauge, for quick set up, and a die arm that can be used to start the threads without direct contact to the spinning die head. This tool is Tool Connect™ Tag-Ready™ (Tool Connect Tag sold separately). The DCE700 Pipe Threader is also compatible with RIDGID® 12R** style die heads.

Additional Features

Patent pending pipe clamp depth gauge for quick set up
Use clamp with die arm for no direct contact with die head to start threads
Tool Connect™ Tag-Ready for easy tool tracking (Tool Connect™ tag sold separately)
LED low battery indicator to alert user when battery level is low
Compatible with RIDGID® 12R** style die heads

Applications

Thread 1/2 in. – 2 in. Schedule 40 Black Iron Pipe
Thread 1/2 in. – 2 in. Electrical Conduit
Thread 1/2 in. – 2 in. Galvanized Pipe
Thread 1/2 in. – 2 in. IMC Pipe

Includes

(6) Die heads complete w/ high speed steel dies: 1/2 in. (12.7mm), 3/4 in. (19.1mm) , 1 in. (25.4mm), 1-1/4 in. (31.8mm), 1-1/2 in. (38.1mm), 2 in. (50.8mm)
(1) Pipe clamp
(2) FLEXVOLT 60V MAX Cordless Pipe Threader Kit With Die Heads
(1) DCB118 20V/60V MAX* Fast charger
(1) Hard carry case
(1) Soft bag
(1) DCE700 FLEXVOLT® 60V MAX* Pipe threader

Specifications

Is it a Set	Yes
Number of Pieces	13
Power Source	Cordless
Product Height	9.4 in
Product Length	26.38 in
Product Weight	19.98 lbs

FLEXVOLT 60V MAX Cordless Pipe Threader Kit With Die Heads

Features
